ラズベリーパイでGBAカートリッジを読み書きするための拡張ボードです。
カートリッジからROMを吸い出したり、フラッシュカートリッジの ROMを書き込んだりできます。

通信ポートを備えているのでマルチブートに対応しています。
専用アプリケーションはネット上で配信します。

(※ Raspberry Pi 2 / 3 / 4 / Zero に対応)

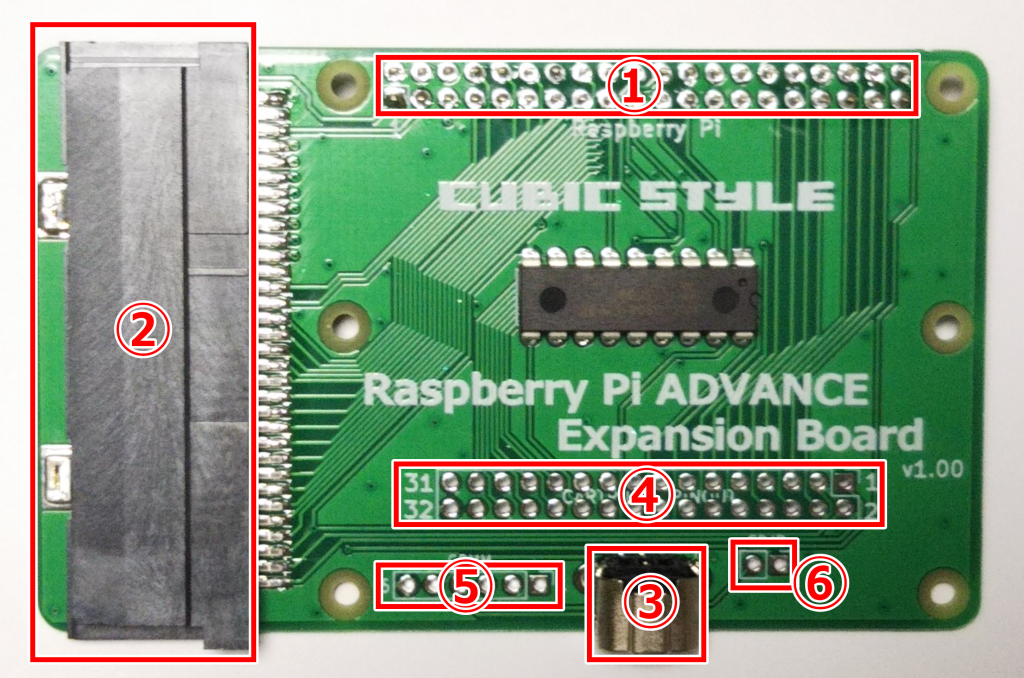

  1. ラズパイのGPIO と接続するピンソケット
  2. GBAカートリッジスロット
  3. 通信ポート
  4. カートリッジ各端子に接続 デバッグ用途等
  5. 通信ポート各端子に接続 デバッグ用途等
  6. 通信ポートのSD端子をGPIO8と接続するジャンパ用



取り扱い説明書 Rev 1.05

 [:en]It is an expansion board for reading and writing GBA cassette lit with raspberry pie.
You can suck out the ROM from the cassette ridge and write the ROM of the flash cartridge.

Since it has a communication port, it is multi-byte compatible.
Dedicated applications are distributed on the net.

(※ for Raspberry Pi 2/3 / Zero)



  1. Pin socket to connect with GPIO of Raspberry Pi
  2. GBA cartridge slot
  3. Communication port
  4. For cartridge terminal debugging
  5. Communication port For each terminal debugging
  6. For jumper connecting SD port of communication port to GPIO 8

 [:]
